Geotechnical Soil Test Drill Rig for kenya With Mud Pump
Product description
Soil Boring Geotechnical Drill Rig for engineering constructions, shallow depth mineral exploration, small size pile hole, water well boring and blasting hole
- Multiple revolving speed grades with large torque meets different project need.
- 2 or 4 -wheels trailer, portable, easy to move by towing the trailer.
- Rotary drilling and cable percussion drilling.
- spindle can turn 360° range .
Feature:
1. Small, light and compact in structure
2. high quality, long duration, long lasting performance
3. Rig incorporated with a mud pump
4. Rig body can slide on base frame to give empty spaces to handle drilling tools
Product Function:
1. Core drill and sampling such as soil investigation, shallow depth mineral exploration
2. Small diameter bore hole such as water well, thermal well, blasting hole, mini piles.
Product technical data
| DRILLING CAPACITY | Depth 180m / 42 |
| SWIVEL HEAD |
| Type | Twin cylinder, Oil-hydraulic feed system, Spindle type |
| Angle Range | 360° |
| Stroke of Spindle | 450mm |
| Revolving Speed of Spindle | 60 200 400 610 1100 rpm |
| Max. Spindle Torque | 1800N*m |
| Max. Thrust Capacity | 20 kN |
| Max. Balance Capacity | 30 kN |
| AVAILABLE RODS | 42mm, 50mm, AW, BW |
| HOIST DRUM |
| Type | Planetary grear, hand brake type |
| Hoisting Capacity | 24 kN at single pull line |
| Rope Speed | 0.20:0.72:1.26:2.8 m/s at single pull time |
| Drum Capacity | *Φ11mm × 26m |
| CAT – HEAD | Φ132 × 110mm |
| OIL - HYDRAULIC |
| Type | Constant delivery, gear type pump |
| Delivery Capacity | 33L/min 1650 r.p.m |
| Max. Pressure | 25MPa |
| POWER | Diesel engine ZS1100, 12.1KW at 2200 r.p.m |
| | Or electronic Motor, 11KW at 1460 r.p.m |
| NET WEIGHT | 600 KG |
| DIMENSION(L×W×H) | 2050 × 1180 ×1420mm |
Product Features
1. The oil pressure feeding mechanism can improve drilling efficiency and reduce the labor intensity.
2. A ball mounted card blessing mechanism replaces the chuck which can carry out without stopping the lever, easy to operate, safe and reliable.
3. Handle concentration, easy operation.
4. It is compact.The drill, water pump and diesel engine are installed on the same base, which occupies a small area.
5. It is light in weight, strong in decomposition and easy to remove .And it can be used in plains and mountains
Product Tags:
|
|

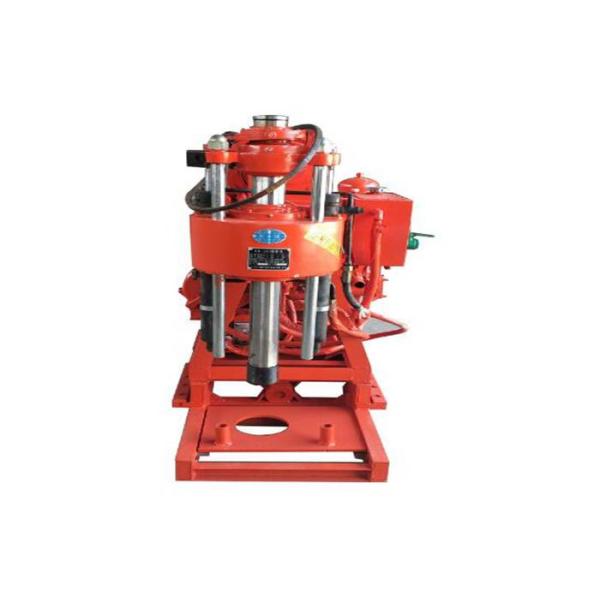

Telescopic Geotechnical 180 Meter Soil Testing Drilling Rig Images
|
