75mm 750kg 180m Deep Well Drilling Machine

Name: 75mm 750kg 180m Deep Well Drilling Machine
Brand: ShiTan
Price: 1 USD

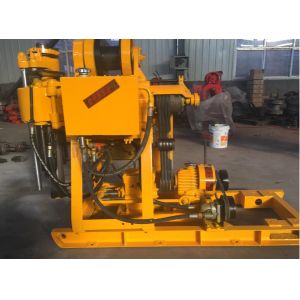

Buy cheap 75mm 750kg 180m Deep Well Drilling Machine product

Brand Name : ShiTan

Model Number : GK-180

Certification : ISO9001

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, D/A, T/T, Western Union

Delivery Time : Within 7-12 days

Packaging Details : Wooden case packing

Type : water well and core drilling machine

Power Type : Diesel

Usage : water well,railways, core drilling, physical prospecting

Voltage : 220V/380V

Rated pressure : 12.5Mpa

Spindle stroke : 450mm

Displacement : 20ml/r

Color : Customised

Contact Now

GK180 Portable Water Well Drilling Rig Reverse Circulation Geotechnical Engineering Machinery

Brief Introduction

GK-180drilling rig is developed to synthesize the advantages of various drilling rigs. The new kind of shallow hole drilling rig is mainly used in engineering geological survey and secondly used in core drilling.

The drilling rig is equipped with a ball mounted card blessing mechanism with six side active drill rods. The utility model can perform no stopping and falling rod. And it has the advantages of high work efficiency, convenient operation, safety and reliability. It is compact, small in size, light in weight, strong in decomposition and easy to remove .

Geotechnical Engineering Machinery Application

1. Engineering geological investigation of railways, hydropower, traffic, bridges, dam foundations and other buildings.

2. Geological core drilling, physical prospecting.

3. Small grout Confucius, drill hole drilling.

4. Small well drilling

Specifications

GK-180 Drilling rig
Drilling depth	180m
Drill rod caliber	42mm
Hole diameter	75mm
Drilling angle	90°-75°
Dimensions	21208751480mm
Weight(without power unit)	750kg
Swivel head
Spindle speed	71,182,310,790r/min
Spindle stroke	450mm
Upward displacement speed of idling vertical spindle	0.05m/s
Downward displacement speed of idling vertical spindle	0.067m/s
Spindle pull-down max.	15KN
Spindle lifting capacity max.	25KN
Spindle max.torque	1.5KN.m
Brake diameter	278mm
Brake belt width	50mm
Hoist
Max. lifting capacity	20KN
Hoisting drum revolution	20,39,85,170r/min
Drum diameter	140mm
Wire rope diameter	9.3mm
Wire rope capability	40m
Oil pump
Model	YBC-20/125
Rated presure	12.5Mpa
displacement	20ml/r
rated speed	800-2500r/min
Water pump
Displacement max.	95(77)L/min
Working pressure max.	1.2Mpa
Rated pressure	0.7Mpa
Liner diameter	80mm
Piston stroke	100mm
Power(diesel engine or motor)
Rated power	16.2KW
Rated speed	2200r/min

75mm 750kg 180m Deep Well Drilling Machine
