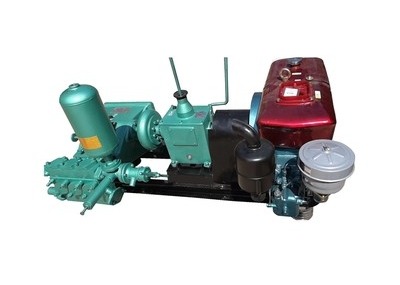

70mm Drilling Rig Mud Pump

Name: 70mm Drilling Rig Mud Pump
Brand: JINZHOUSHITAN
Price: 1 USD

Buy cheap 70mm Drilling Rig Mud Pump product

Brand Name : JINZHOUSHITAN

Model Number : BW150

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 2000 sets per year

Delivery Time : 7-12 days

Packaging Details : Standard Export Package

Type : mud pump

Structure : Diaphragm Pump

Usage : Air Pump

Application : DRILL RIG

Power : Electric, 7.5kw

Fuel : Diesel

Pressure : High Pressure

Max. traffic : 150L/min

Contact Now

Single Cylinder Grouting Pump Drilling Rig Mud Pump

Drilling Rig Mud Pump Brief Introduction

BW150 Mud pump is horizontal, three-cylinder reciprocating single acting piston pump. The pump can be driven by electric motor or diesel engine according to the requirement of the customer in order. BW150 mud pump has the advantages of compact construction, light weight, readily movable and easy to be operated etc.

Drilling Rig Mud Pump Specifications

Model	BW150 drilling mud pump
Type	Horizontal, three cylinder reciprocating single acting piston pump
Cylinder diameter (mm)	70
Stroke (mm)	80
Pump speed (times/min)	57 86 130 222 47 71 107 183
Flow (l/min)	38 58 90 150 32 47 72 125
Pressure (Mpa)	7 4.8 3.2 1.8 7 6 4 2.3
Power	7.5kw
Size (mm)	19257951150 (Diesel power) 1840795995 (Electric power)
Weight (kg)	630 (Diesel power) 560 (Electric power)

Main Features of Drilling Rig Mud Pump

Compact structure, light weight, small volume, beautiful appearance, is driven by a hydraulic motor, electric power or diesel engine.
BW series slurry pump is horizontal triplex grout pump with high stability and high pressure.
Mud pump has gear shift to adjust the flow, large output capacity, simple operation.
High quality pump parts, less wearing parts, long service life, low construction cost.
It has fast suction-discharge speed, high pump efficiency.
Mud pump has less noise and dust, environmental operation.

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
