Mining Drilling Machine Air Compressors
Brief introduction of air compressor
1 Application:
Widely used in electricity, rail, ship repair, mining, roads, spray, oil and gas fields, drilling wells, municipal construction, cable laying, and other related fields.
2 Status Monitor:
We design the instrument In accordance with primary and secondary principle,the interface is more concise, It allows users to operate more simply and handy.
3 European wing design
Wing design, beautiful appearance, easy maintenance and repairs
4 low transport costs
Small size, light weight, low noise; shape lightweight, easy to transport, small practical footprint, It can access freely in the narrow conditions and reduces transportation costs.
5 large capacity fuel tank
With a large-capacity fuel tank, it can work continuously for more than eight hours.
6.Low noise
It's installed noise absorption sponge in all directions to make noise lower.
Air compressor parameters
| Model |
DACY-13/8 |
| Air flow capacity |
13m3/min=459 cfm |
| Rated Exhaust pressure |
8bar=114psig |
| Working pressure range |
5-8 bar |
| Lubricating oil volume |
54L |
| Interface size and qty |
R1.1/2'' ball valve 1pcs, R1'' ball valve 1 pcs |
| Tyre specification |
6.5-16*2 |
| Tyre pressure |
500-600 kPa |
| Wheel distance |
1560mm |
| Highest operating altitude |
3000m |
| Dimension (L*W*H) |
3220*1850*1850mm |
| Air end type |
Hanzhong AA-1030R |
| Weight |
2450 kg |
| Noise |
80-85 dB(A) |
| Diesel engine model |
6BT5.9 |
| Engine oil volume |
12-18L |
| Cooling liquid volume |
25-28L |
| Rated power |
110kw=150hp |
| Rated rotation |
2400 rpm |
| Fuel tank volume |
120-160 L |
| 80% load oil consumption |
17-18 L/h |
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
Product Tags:
|
|

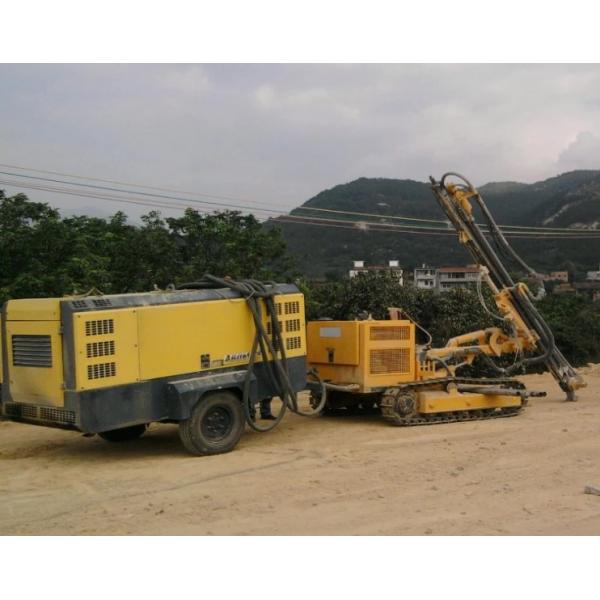

Mine 459 Cfm 8 Bar Drilling Rig Compressor Images
|
